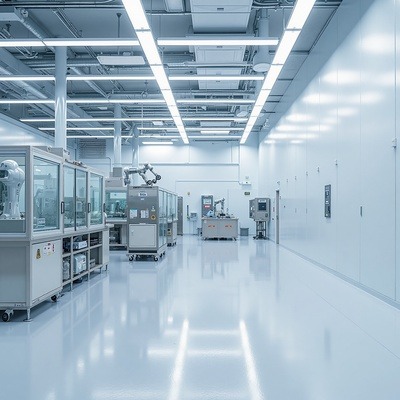

Pharmaceutical cleanrooms require strict adherence to regulatory standards to ensure product safety and quality. This guide covers key requirements and compliance strategies. Regulatory Framework Key regulations governing pharmaceutical cleanrooms: FDA cGMP: Current Good Manufacturing Practices EU GMP Annex 1: Manufacturing of Sterile Medicinal Products ISO 14644: Cleanroom classification and monitoring ISO 13485: Medical device quality management Cleanroom Classifications Pharmaceutical grades and corresponding standards: Grade A (ISO 5): High-risk operations (filling, aseptic connections) Grade B (ISO 5): Background for Grade A zones Grade C (ISO 7): Less critical processing areas Grade D (ISO 8): Support areas and component preparation Environmental Monitoring Comprehensive monitor...

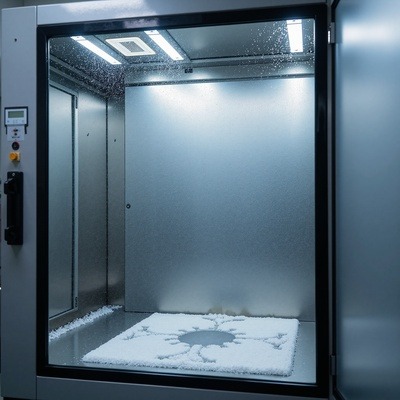

Air shower systems are critical entry points for contamination control in cleanrooms. This comprehensive guide covers selection, installation, and maintenance best practices. How Air Showers Work Air showers use high-velocity HEPA-filtered air to remove particles from personnel before entering clean areas: Automatic door systems prevent cross-contamination Multiple nozzles provide 360-degree coverage Air velocity typically 20-25 m/s for effective particle removal Cycle times adjustable from 0-99 seconds Types of Air Showers Different configurations for various applications: Single Person: Compact design for individual use Double Person: Wider chamber for two users simultaneously Tunnel Type: Continuous flow for high-traffic areas Material Air Lock: Designed for equipment and materials Installation Best Practices Position at cleanroo...

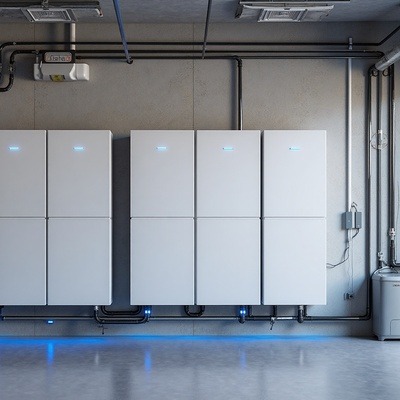

Energy efficiency is a critical consideration in modern air filtration system design. This article explores technologies and strategies for reducing energy consumption. EC Motor Technology Electronically Commutated (EC) motors offer significant advantages: 30-50% lower energy consumption compared to AC motors Stepless speed control for precise airflow adjustment Soft-start capability reduces inrush current Integrated electronics eliminate external VFDs Variable Air Volume (VAV) Systems VAV systems adjust airflow based on demand: Reduce fan speed during unoccupied periods Modulate airflow based on particle counts Optimize pressure differentials dynamically Energy savings of 40-60% compared to constant volume Heat Recovery Recover energy from exhaust air: Plate heat exchangers (60-70% efficiency) Run-around coils for remote heat recovery Heat pumps for...

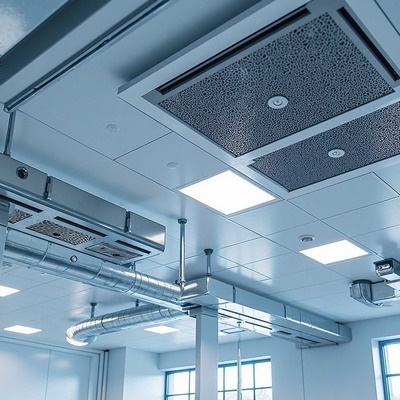

ISO 14644 is the international standard for cleanroom classification and operation. This guide provides a comprehensive overview of the key requirements. ISO 14644-1: Air Cleanliness Classification The standard defines 9 cleanliness classes (ISO Class 1-9) based on airborne particle concentration: ISO Class 5: ≤ 3,520 particles (≥ 0.5 μm) per m³ ISO Class 6: ≤ 35,200 particles (≥ 0.5 μm) per m³ ISO Class 7: ≤ 352,000 particles (≥ 0.5 μm) per m³ ISO Class 8: ≤ 3,520,000 particles (≥ 0.5 μm) per m³ ISO 14644-2: Monitoring Requirements Regular monitoring ensures continued compliance: Particle counting at defined frequencies Pressure differential monitoring Temperature and humidity control Airflow velocity and volume verification ISO 14644-3: Test Methods Standardized te...
